Rhino Pitcher Rinser - 300mm - Spinjet

The Rhino RHPR300-S is specially designed for use in cafes, restaurants, coffee bars, and juice bars. It has a honeycomb drain tray and Actuator Star design to prevent liquid build-up, and a Spinjet Valve that sprays and spins simultaneously for a thorough clean. At just 300mm, it fits multiple milk pitchers and is ideal for busy hospitality settings.

Features:

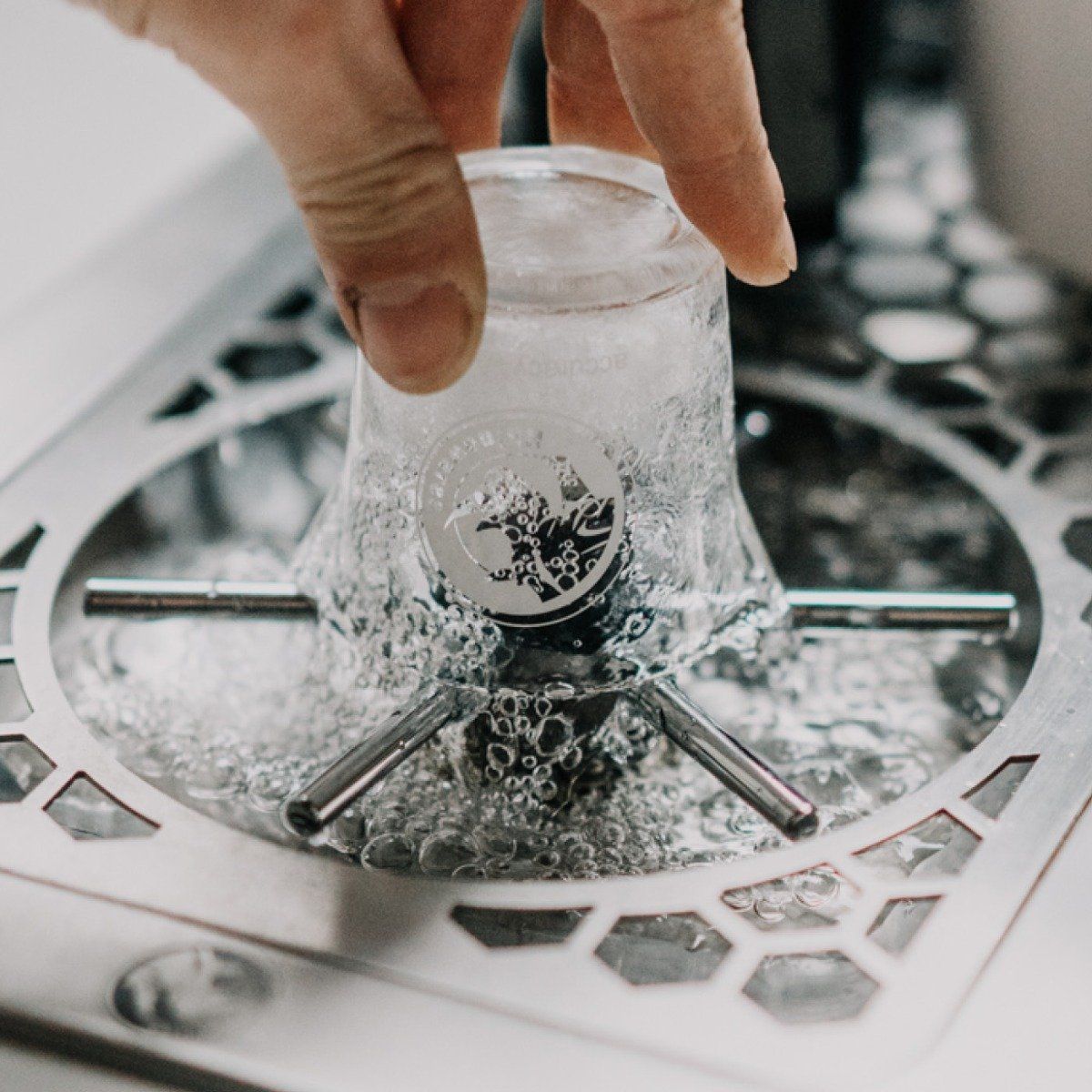

• The Spinjet Valve sprays and spins at the same time, creating a more robust mechanical cleaning action than regular rinsing valves. It is ideal for plungers using tea leaves, stubborn coffee grounds, milk, and other residues that can often be difficult to clean.
• The honeycomb grate design minimizes the surface area of the drain tray, reducing the static build-up of liquids and making cleaning easy. The low-profile body is optimally sloped and angled to ensure the effective removal of liquids, reducing common odors caused by static waste. A large drain outlet and a wide grate-free opening near the drain create a convenient location to quickly discard larger volumes of liquid.
• The Actuator Star diameter allows both small and larger vessels to be cleaned easily. An ideal add-on for blender jugs and other larger vessels is the Blender Adapter Kit. This kit includes an extension rod and a larger actuator to suit plungers, milkshake cups, and popular blender jugs such as Blendtec and Vitamix.

Specifications:

• Dimensions (approx) - W: 231mm (9.09") x L: 354mm (13.94") x D: 85mm (3.35") (Depth from drain elbow to top of the bench.
• Materials: Stainless Steel
• Drain Hose: 25mm (1") size (not included)
• NSF Certified

Standard Inclusions:

• 1x Sink
• 1x Spin jet spray mech with star
• 1x Hexagon grate drip tray
• 1 x John Guest Hose Adapter (drain hose not included)

 Installation Information:

• Depth Requirements: The Rhino rinsers are 40mm deep; however, this is without fittings. We recommend at least 150mm of clearance under the bench for basic connection (this includes fall for the drain hose). The actual depth may differ depending on the location of the drain, the location of the water supply, or whether you use an elbow or a straight connector.
• Installation: Due to slight variations in manufacturing design and the varying requirements of bench materials, it is strongly recommended to have the physical pitcher rinser on hand prior to cutting into benchtop surfaces. Bombora does not take responsibility for installation cut-out errors and provides the sizes and dimensions as a layout guide only.
• It is recommended that a Pressure Limiting Valve (PLV) is used when installing on the mains water line.
